What's New in Automation Studio™ E7

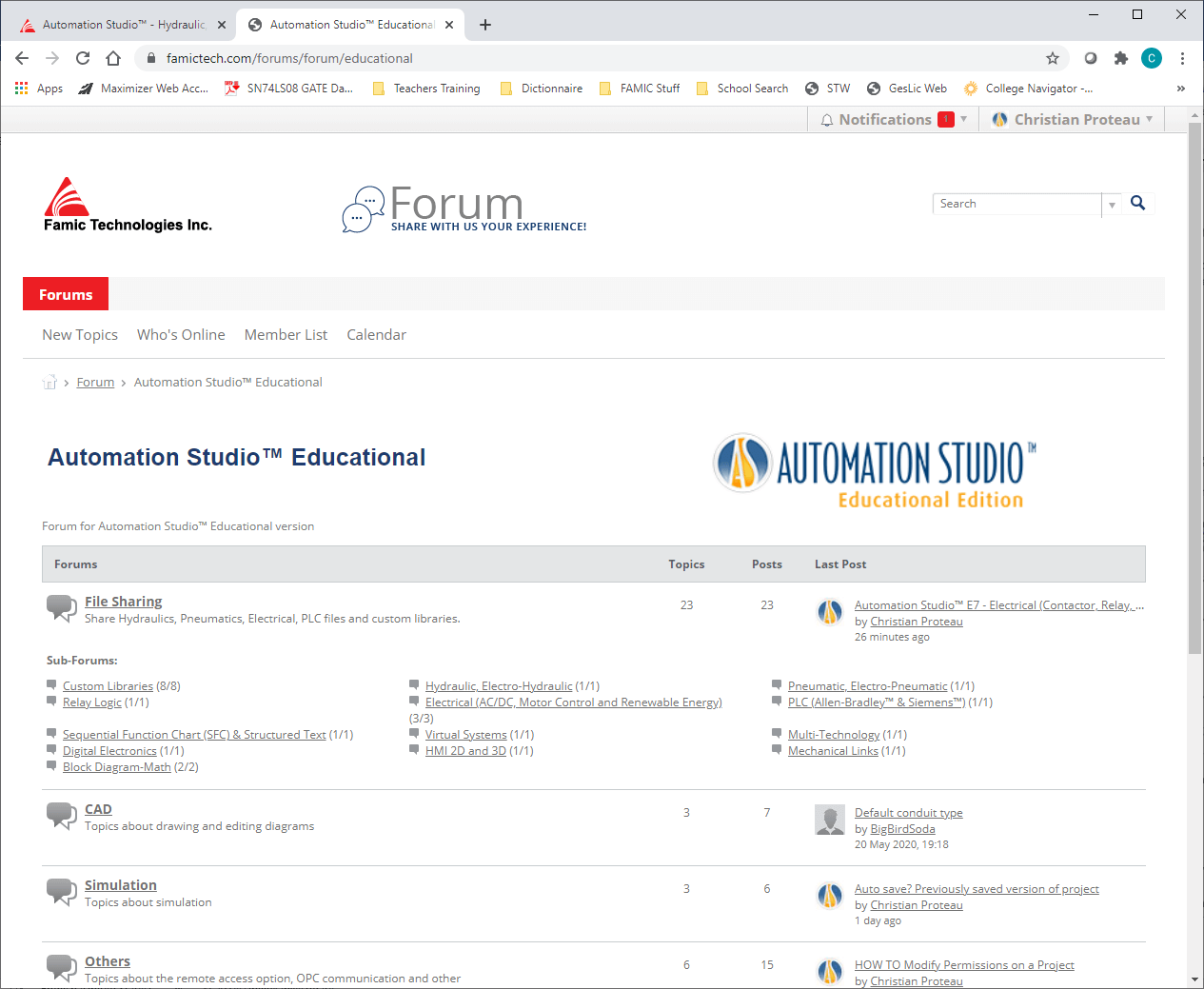

Automation Studio™ E7 – Educational Edition is all about supporting teachers in delivering content, as well as improving the student’s learning experience. Use real-looking illustrated components to create and simulate circuits. A new Forum is available to quickly access the latest demonstration files and custom libraries. You can also share your projects and experience with other instructors and users worldwide.
Contact us for a Live Online Demonstration of the new features.
*Some of the new features’ availability is subject to the configuration of the purchased license. 7.0

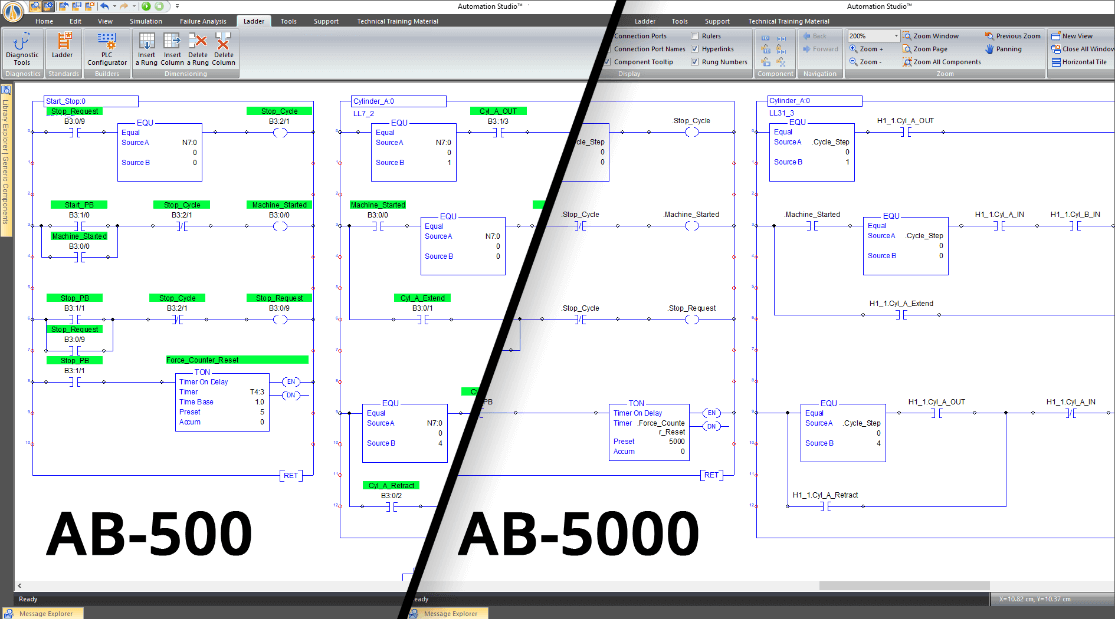

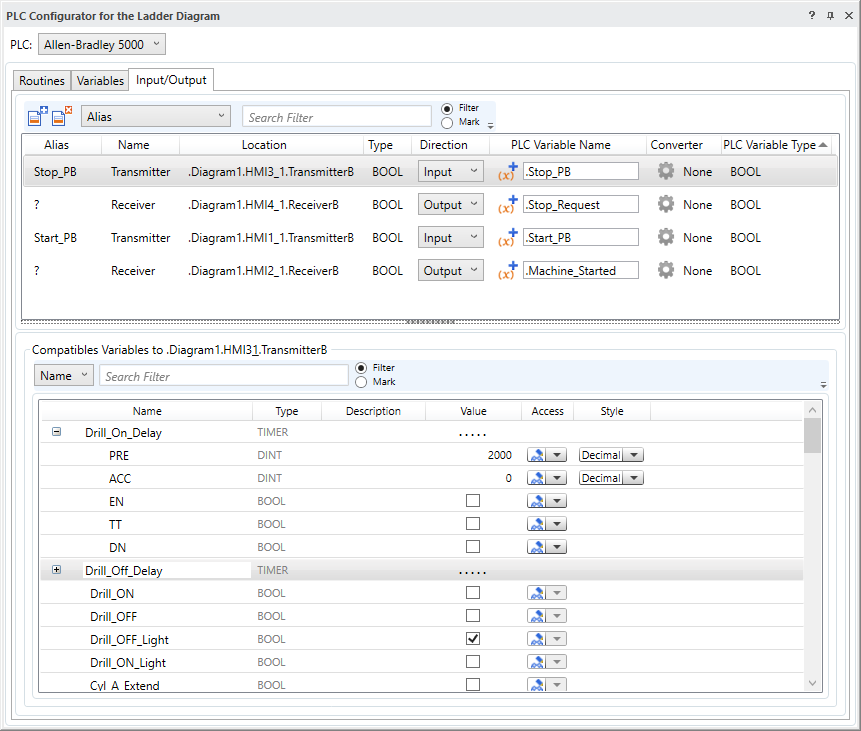

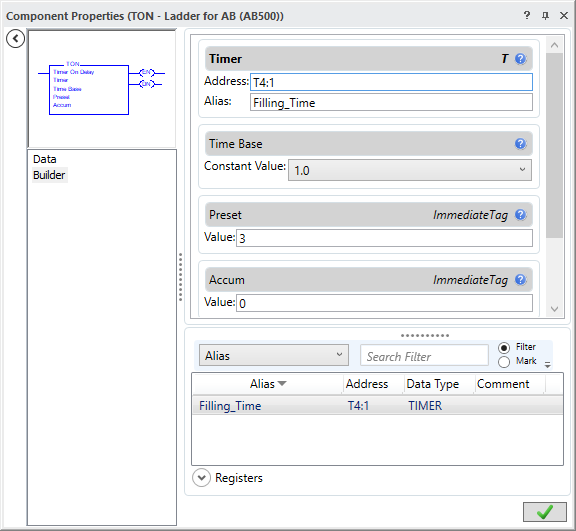

AB-500 and AB-5000 Compatible Functions and Addresses
Computer-aided engineering (CAE) is the use of computer software to simulate performance in order to improve product designs or assist in the resolution of engineering problems for a wide range of industries. This includes simulation, validation and optimization of products, processes, and manufacturing tools.
CUSTOM LIBRARIES
PLC Illustrated Library

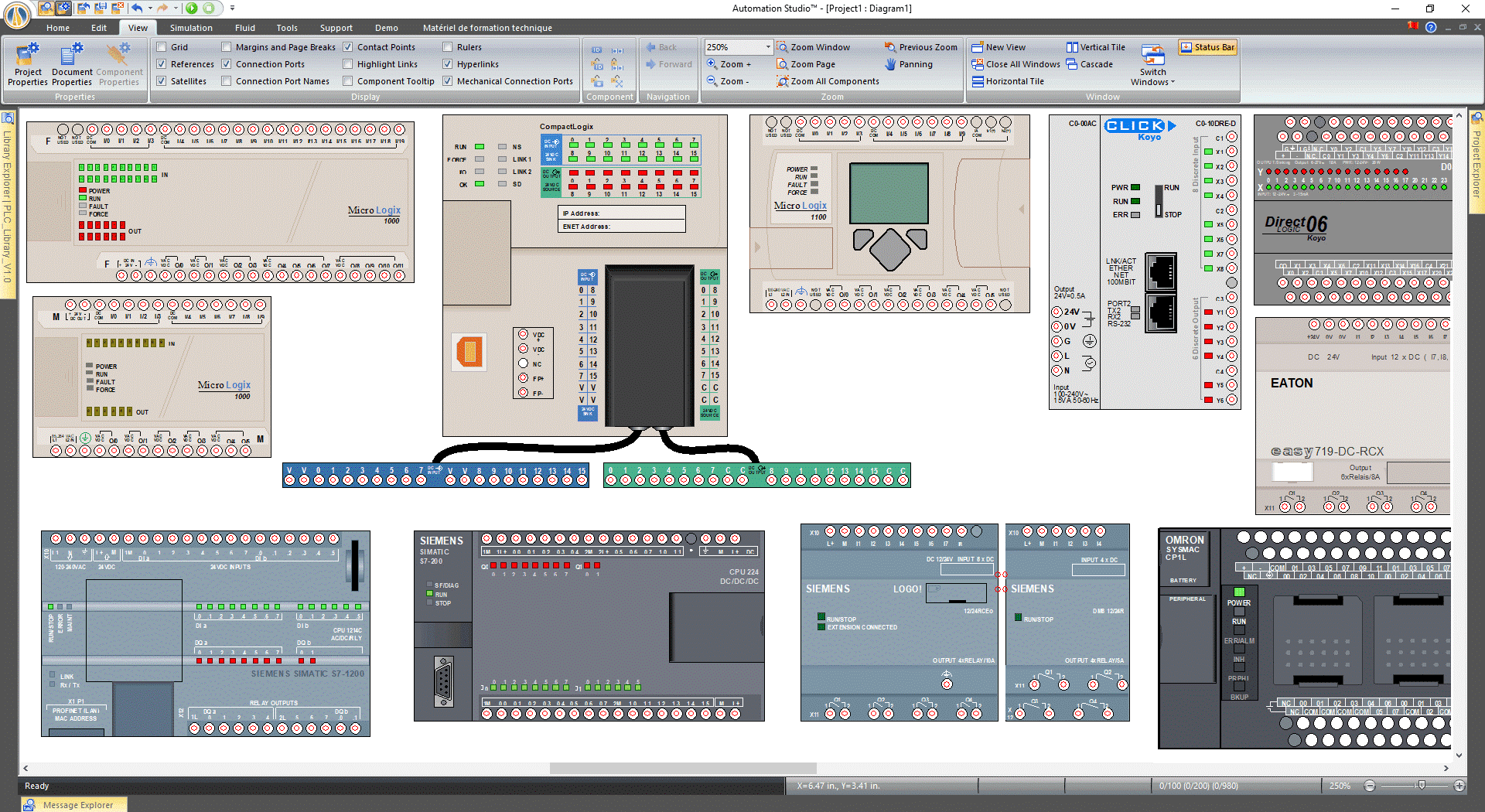

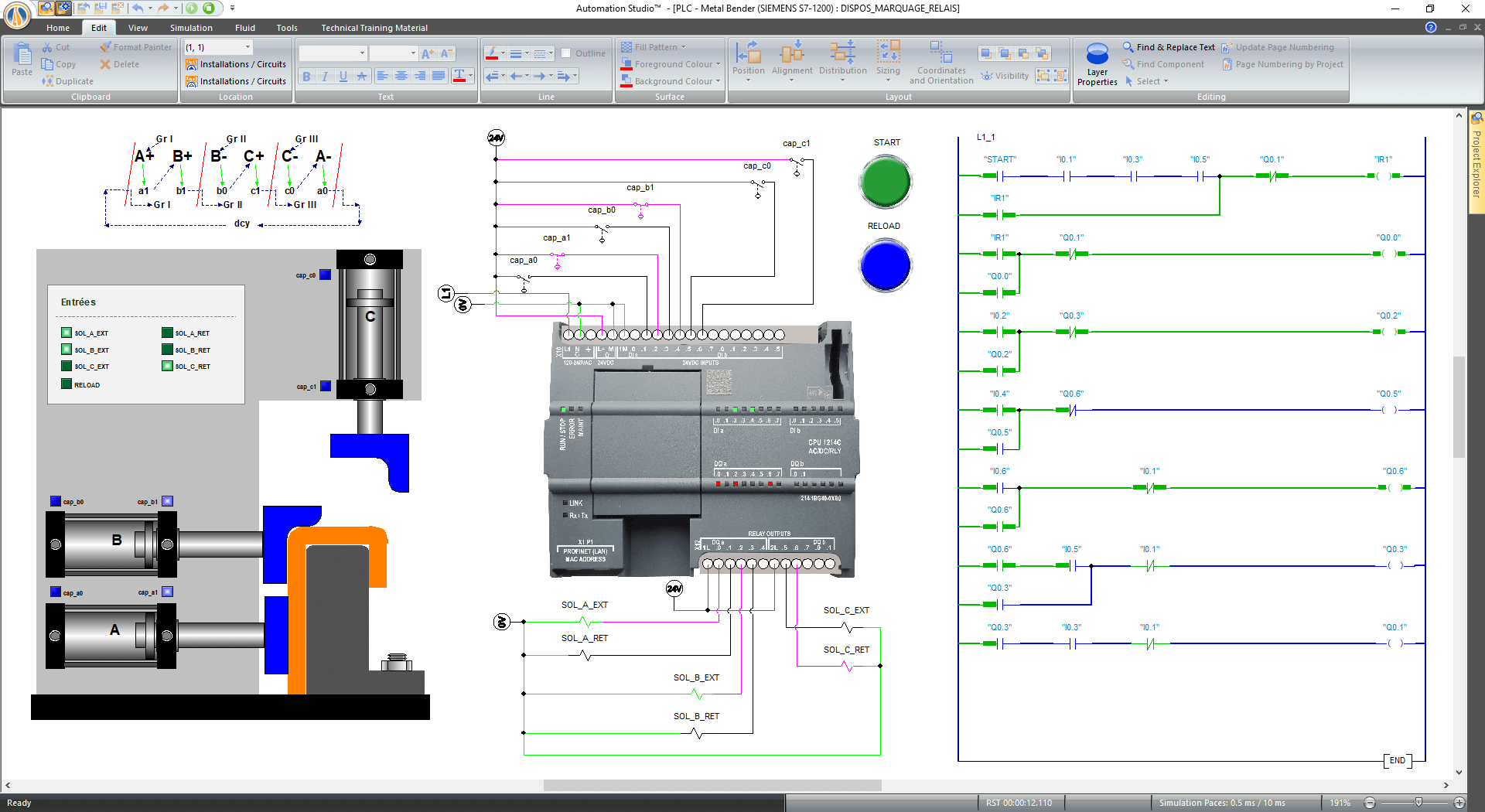

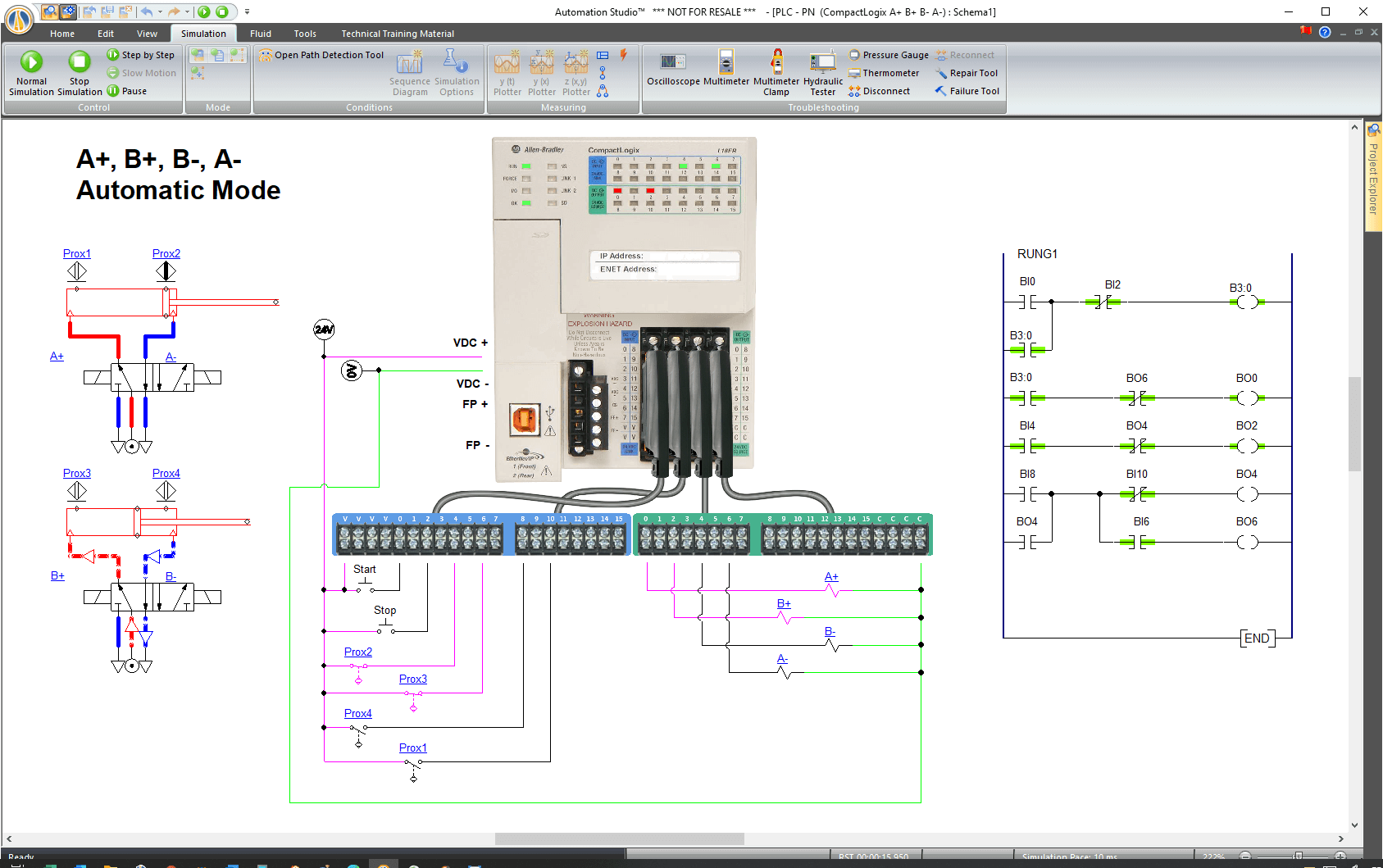

This library was created to enable students to actually wire up the PLC (Allen Bradley, Eaton, Koyo, LS Electric, Mitsubishi, Omron, Siemens, etc.), write the Ladder Logic and run the simulation to see the inputs and outputs being triggered on the PLC according to their ladder diagram.
Renewable Energy Illustrated Library

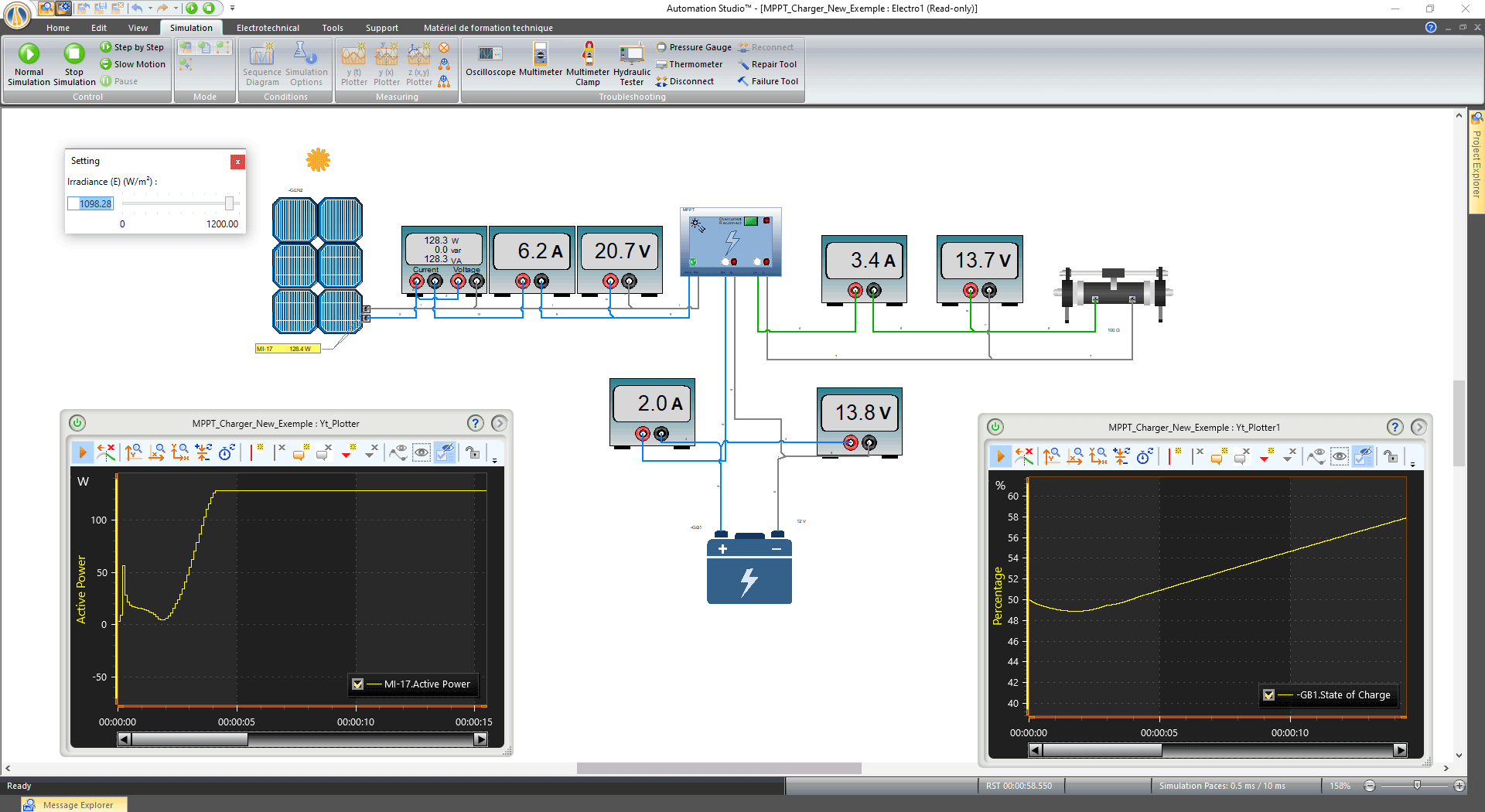

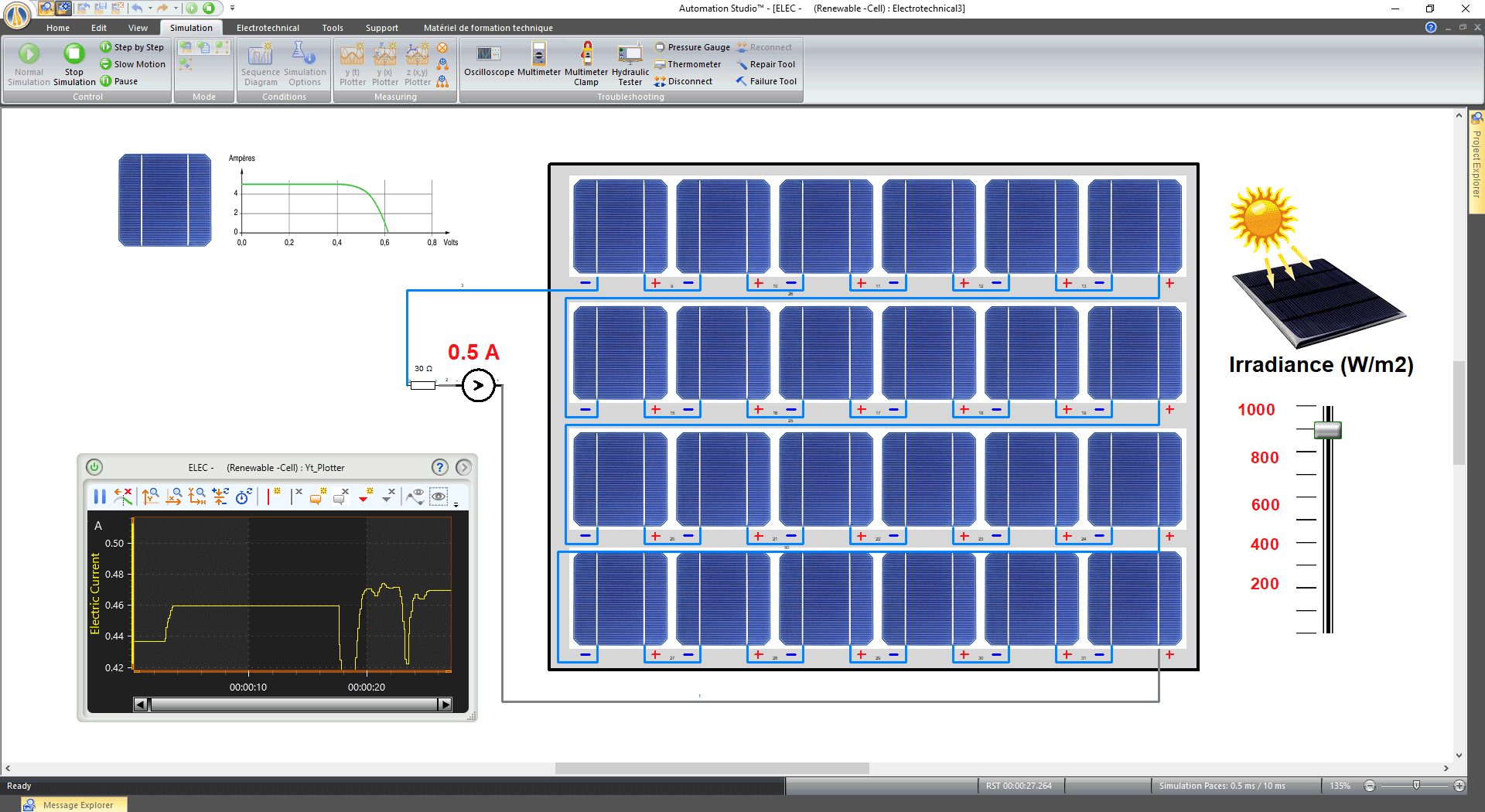

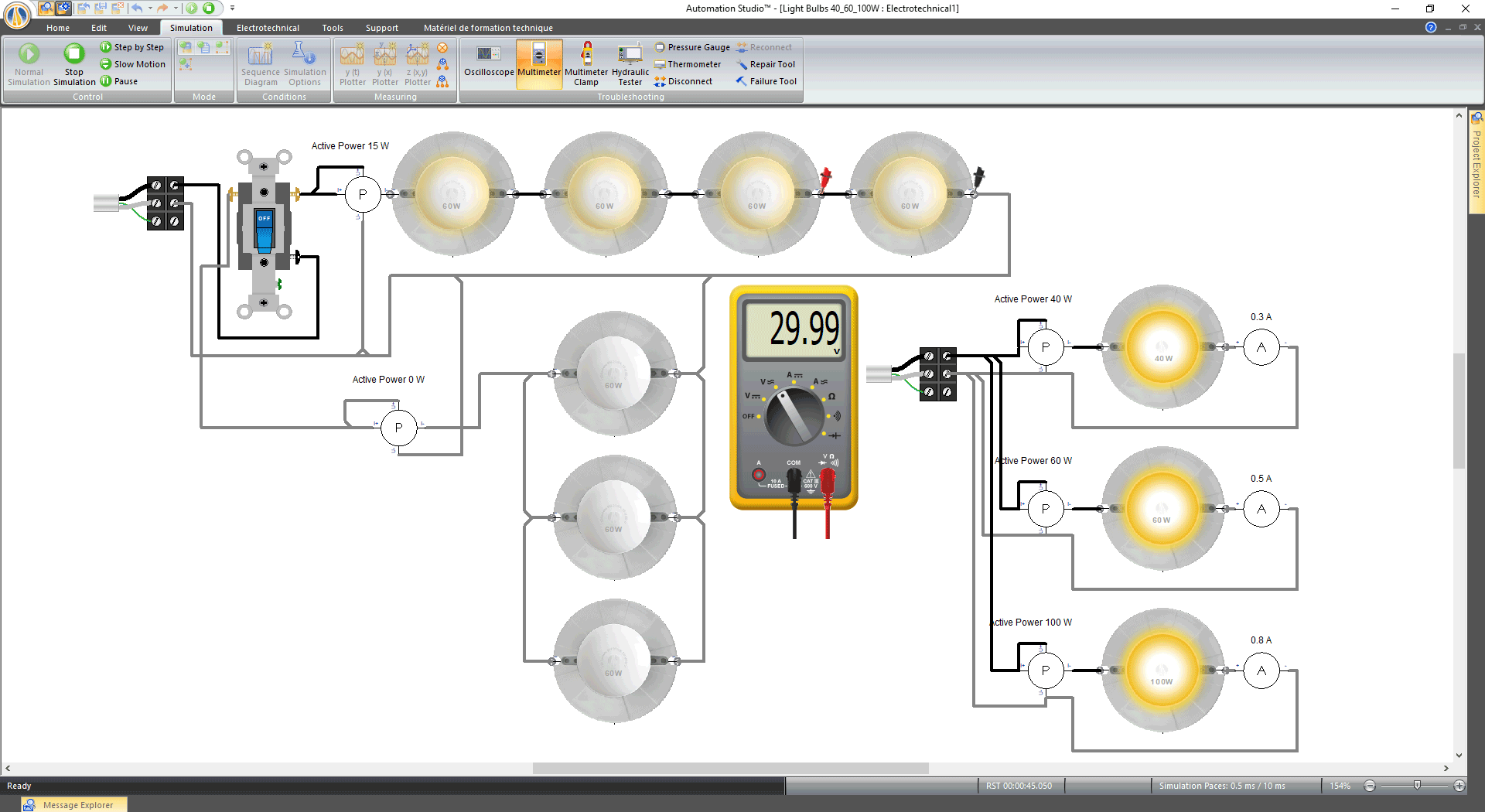

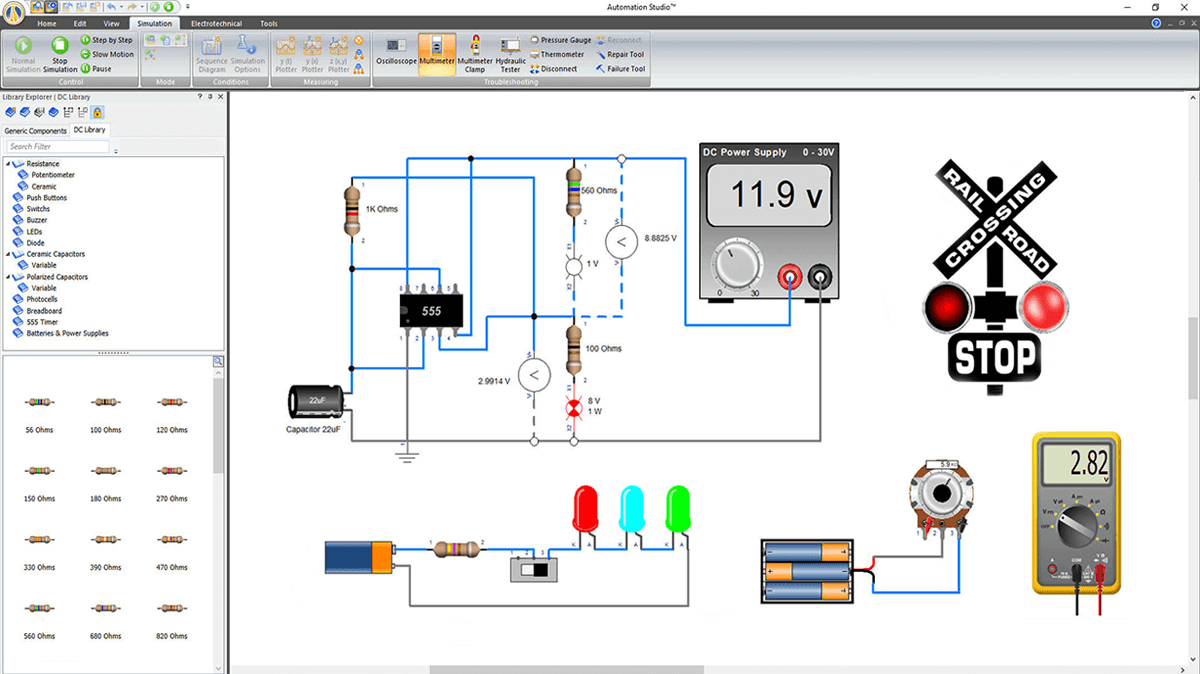

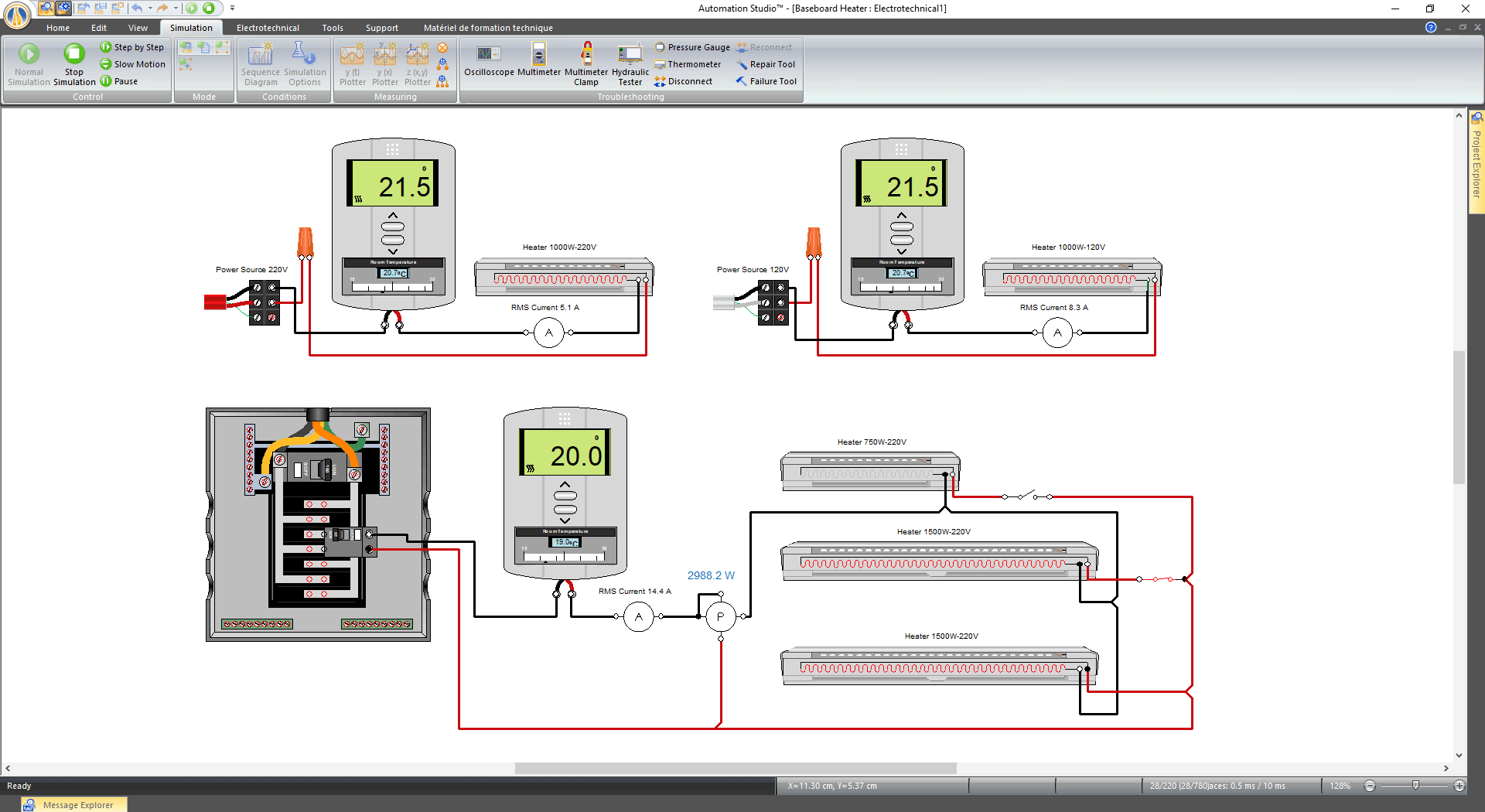

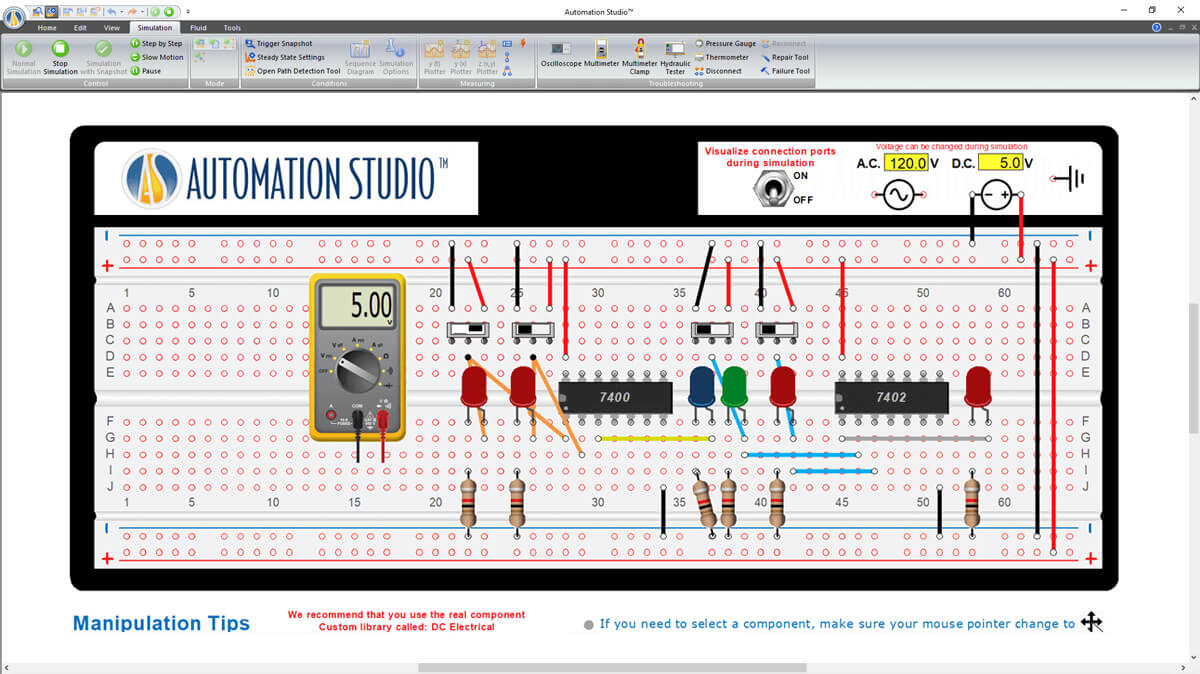

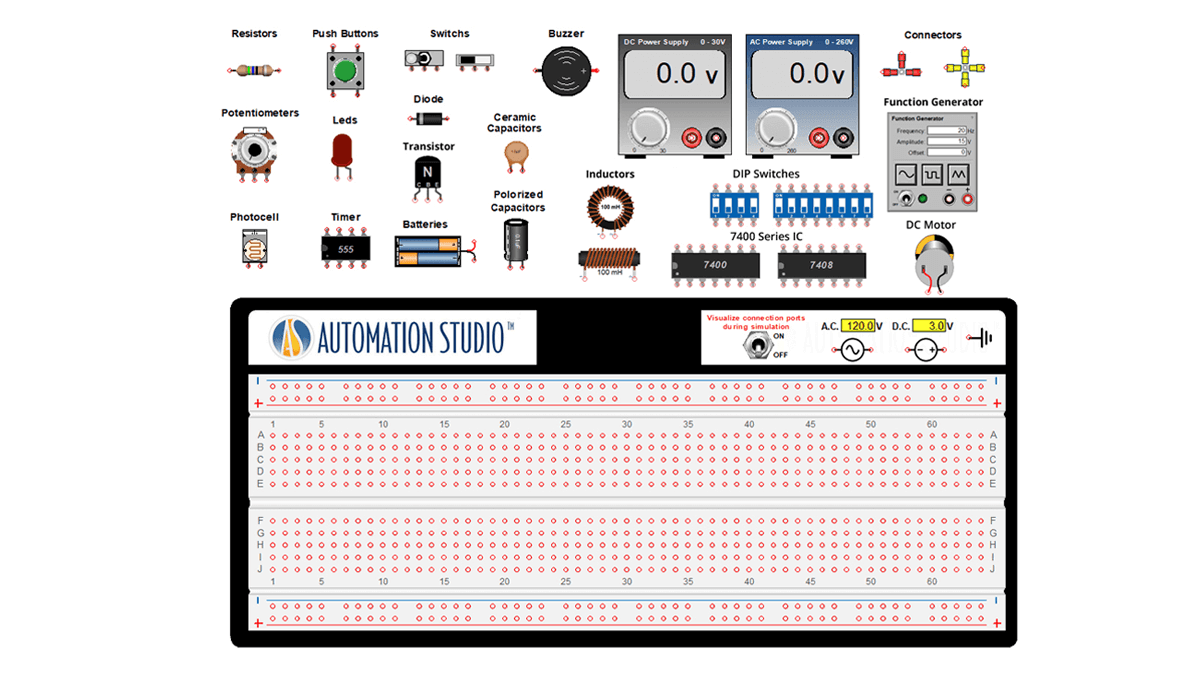

The new Renewable Energy library is made with illustrated components. It enables to create and simulate circuits with look-alike components from real-world applications. Some components even animate during simulation, creating an optimal experience for training activities.
ELECTRICAL
New Semiconductor Devices
New semiconductor components have been added to the Electrotechnical library.
- Bipolar Junction Transistor (BJT)
- Junction Field Effect Transistor (JFET)
- Metal-Oxyde-Semiconductor Field Effect Transistor (MOSFET)
- Thyristors

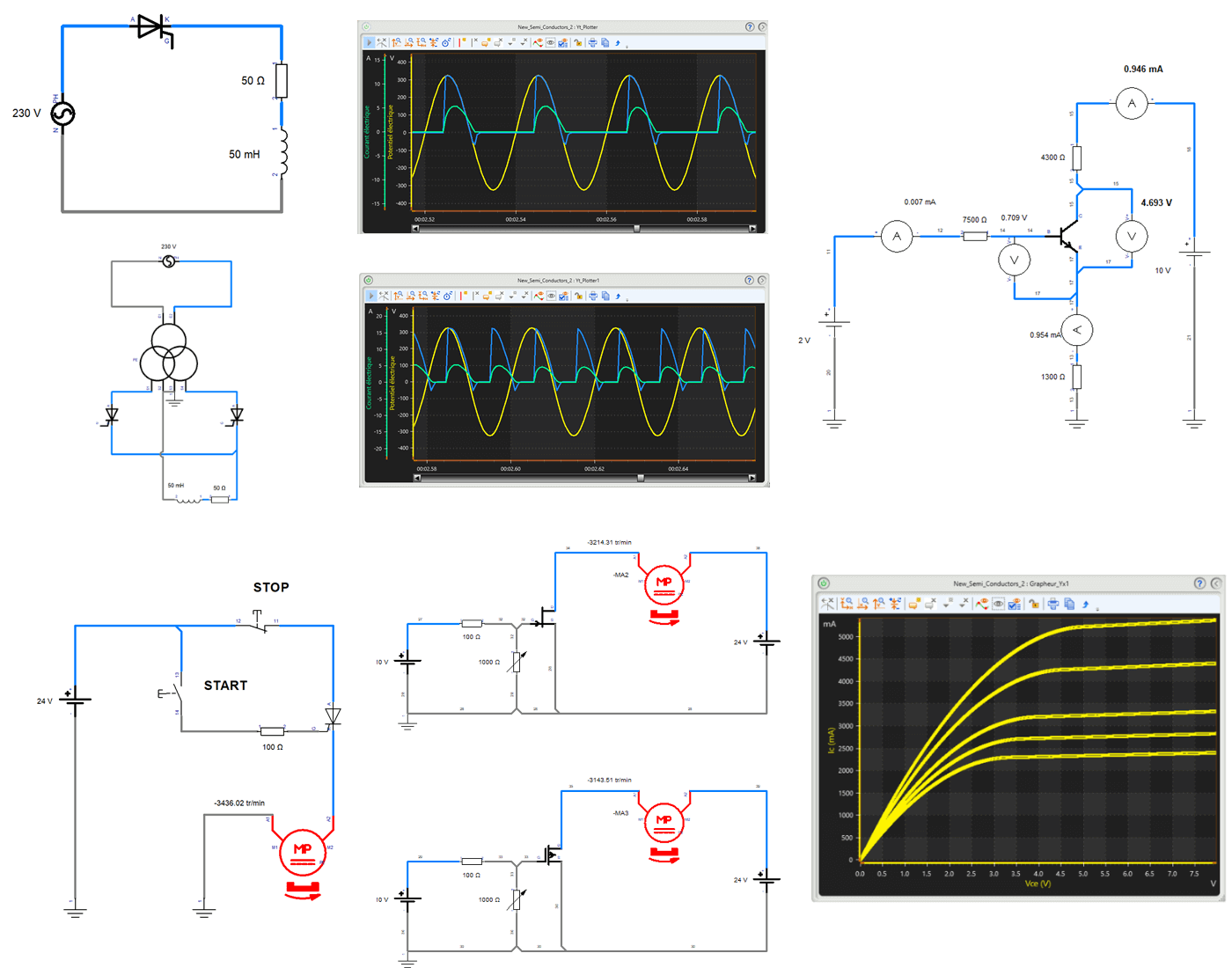

Thyristors, bipolar transistors and field effect transistors have been introduced. The thyristor can be controlled by a variable or by an external circuit and the transistors have been designed to operate in both switching and amplification modes.
Improvement of the Battery Component
- The ageing effect on the battery capacity is now taken into account

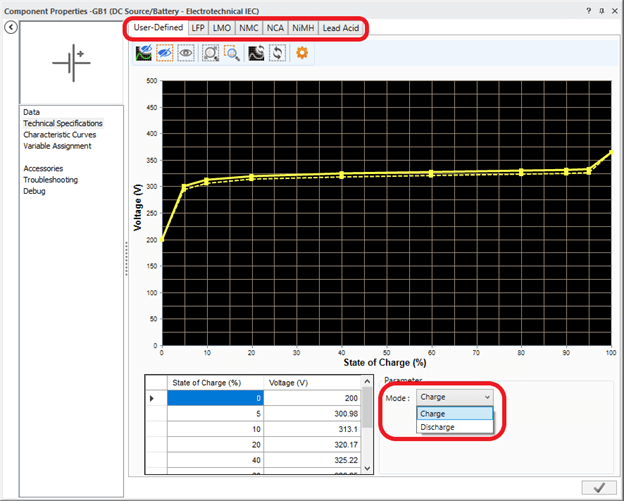

- OCV hysteresis effect is taken into account by differentiating OCV vs SOC curves during charge and discharge
- New advanced model taking into account the voltage transients’ behaviour during charge and discharge
- Predefined battery parameters for the different available battery types

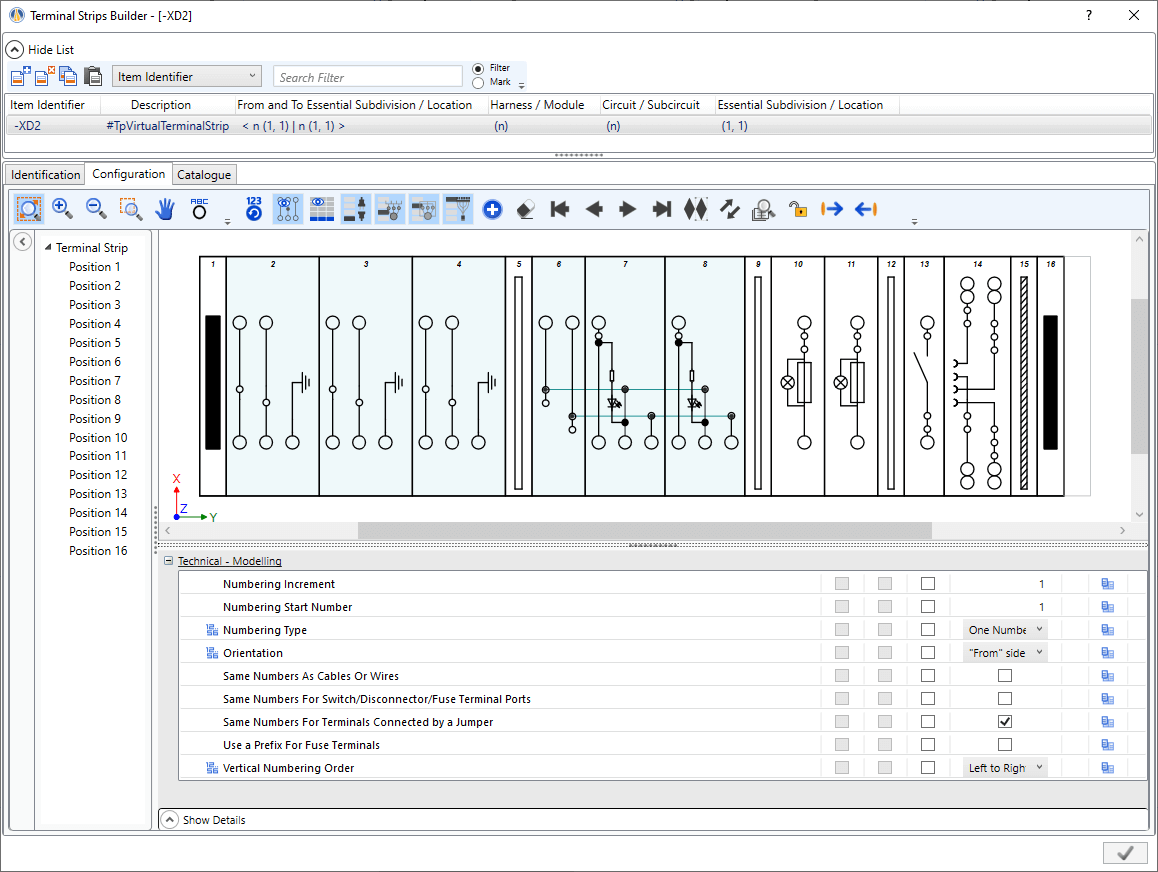

Terminal Strips Builder
New terminals with jumper channels management of different categories were added:
- Feed-Through
- Ground
- Feed-Through with Ground
- Knife Disconnect
- Disconnect
- Sensor / Actuator
- Fuse Holder
- Distribution Blocks
Simplified terminals are still available. The new builder allows complete management of the Terminal Strips, including the accessories management and the part numbers. Terminal strip export and import functions are also available.
FLUID POWER
New Hydraulic Components

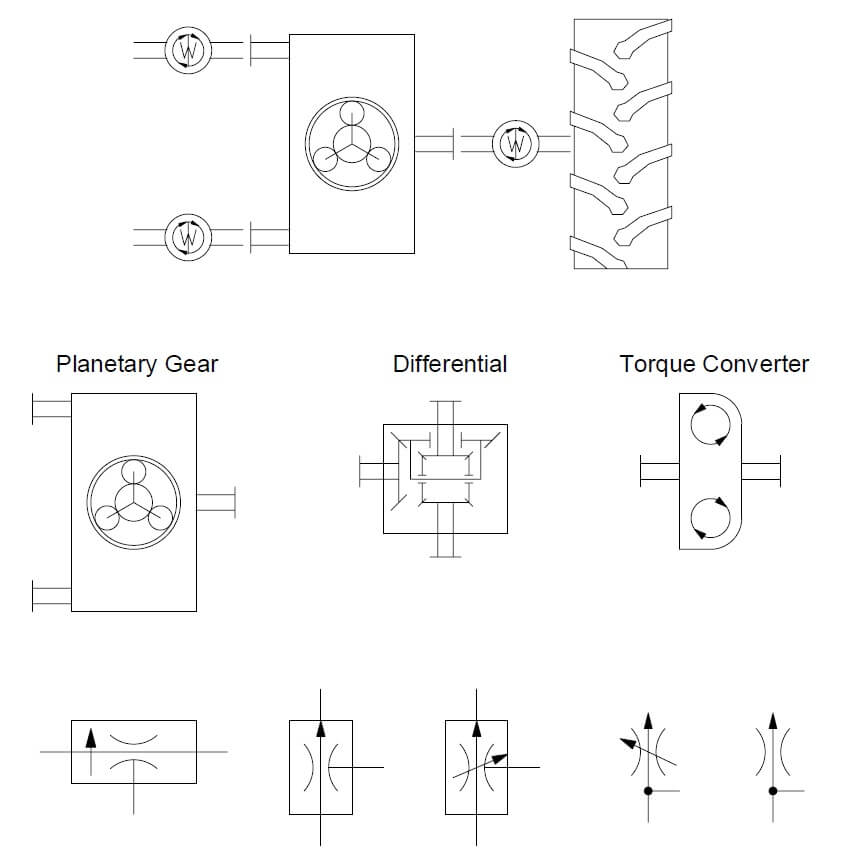

- Planetary gearboxes
- Differentials and torque converters
- Pressure compensated flow dividers
- Jumps with label frame
Improved Hydraulic Components Simulation Models

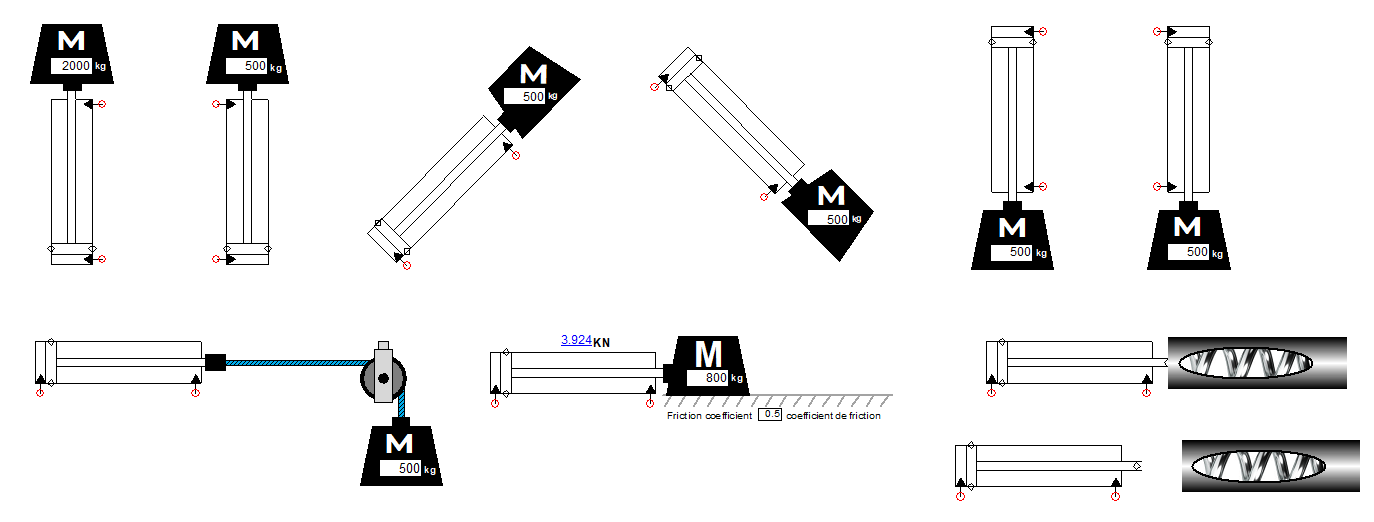

- Hydraulic motor plates can now have a limited stroke
- Added an exchange surface area for the external dissipation of hydraulic heaters
- Improved curve tracking in pressure regulators
- Pressure compensated flow dividers
- Improved manual directional valve commands
VIRTUAL SYSTEMS
Virtual Systems Using Unity 3D

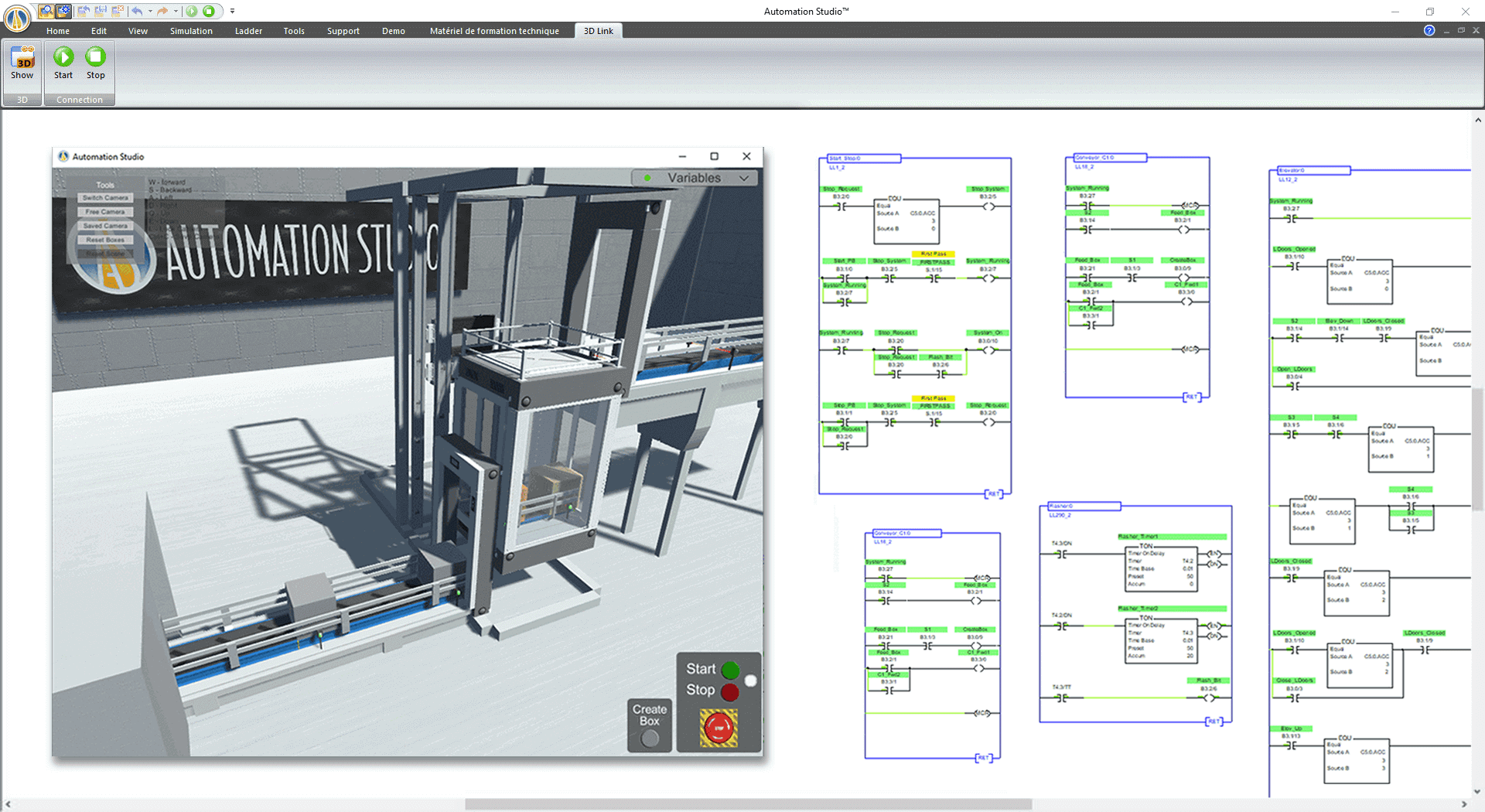

Virtual systems created using Unity 3D allow a training experience with a high level of realism. These systems can be controlled within Automation Studio™ using Electrical Controls, PLCs and/or Sequential Function Chart. Access the Forum to download the files and procedure to install the Unity 3D models. New virtual systems are frequently added.
